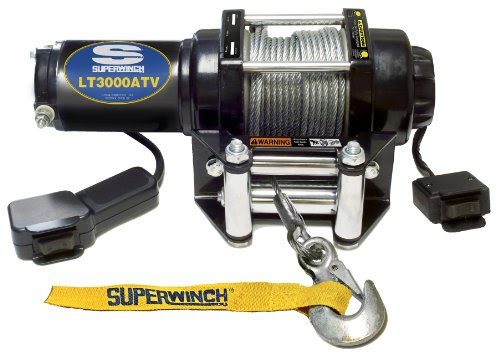

The Superwinch LT3000 ATV Winch is a great winch at a reasonable price that provides the versatility and durability that is a necessity for serious ATV and other sports vehicle owners. Graded at an intermediate level, it possesses a rugged full metal 3-stage planetary gear train, a 3,000-LB pull rating, a 1.2 horsepower permanent magnet low-amp draw engine, 50-feet of durable 3/16" wire rope, a heavy-duty 4-way roller fairlead, a wired handheld remote with 12' lead, a free-spooling, ergonomic clutch and more.

Intermediate All-Pupose Winching for ATVs

An outdoorsman's best choice for compact, quiet, all-purpose winching, the versatile LT3000 ATV winch from Superwinch is ideal for those needing a larger, durable winch with brand-name reliability and functionality. Constructed with a low amp, permanent magnet motor protected by a circuit breaker, the LT3000 delivers the reliable performance that has made Superwinch the brand users recognize and trust. It is also a great winch winch for the casual ATV snowplow application.

The winch mount plate kit used to install this winch on your ATV, UTV or Side-by-Side is sold separately. Consult the Superwinch ATV Application Guide to find the right kit for your vehicle.

3,000 pounds of versatile pulling power for your ATV, UTV or Side-by-Side.
View larger.

Ergonomic freespool control makes for a clutch that is easy to engage and disengage.
View larger.

Important Safety Features

As with all Superwinch products, safety is an important consideration of the LT winch series. With this in mind the Superwinch LT3000 ATV winch contains a wealth of valuable safety features standard. These include mechanical and dynamic braking and 100% automatic load holding to minimize the possibility of wire rope slippage in the event of power failure or surge, and to provide quick stopping of the drum; a sealed solenoid and circuit breaker protection to ensure safe, reliable, electromagnetic power in all weather conditions; and a rubberized remote switch with a 12' lead allowing for safe distances and positioning between the user and winch during off vehicle use.

Specifications

• Rated Line Pull - 3,000 lbs (1,361 kgs)
• Motor - Sealed 1.2 HP permanent magnet
• Gearing / Gear Ratio - 1-Stage planetary / 136:1
• Solenoid - Sealed solenoid, circuit breaker protected
• Clutch - Free-Spooling, ergonomic control
• Brake - Automatic, 100% load holding
• Rope - Wire rope 3/16" x 50' (4.8mm x 15.0m)
• Hook - Heavy-duty, clevis pinned latch
• Fairlead - Heavy-duty 4-way roller
• Remote - 12' handheld remote
• Dimensions - 13.2" L x 4.25" W x 4.25" H (335.3mm L x 108mm W x 108mm H)
• Drum Diameter / Length - 2.0" (50.2mm) / 2.9" (74mm)
• Mounting Bolt Pattern - 3.0" x 4.87" (76mm x 124mm)
• Installed Weight - 20.0 lbs (9.0 kgs)
• Line Pull: 0 lbs - 15 Amps motor draw / 27 FPM (8.3 MPM) line speed
• Line Pull: 3,000 lbs - 180 Amps motor draw / 4 FPM (1.2 MPM) line speed

Two-Year Limited Warranty

Superwinch, Inc. warrants to the original buyer that the mechanical components of this genuine Superwinch winch model shall be free from defects in materials and workmanship from the date of purchase of new products for (2) two years, and that the electrical components shall be free from defects in materials and workmanship for (1) one year from the provable date of purchase, or otherwise specified time period. Any product that Superwinch determines to be defective will be repaired or replaced Superwinch's discretion without charge to buyer upon buyer's compliance with disclosed procedures.
